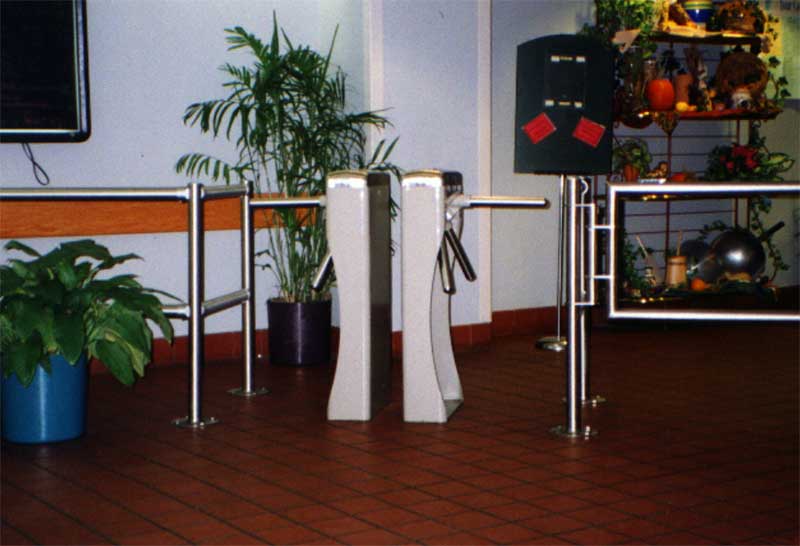

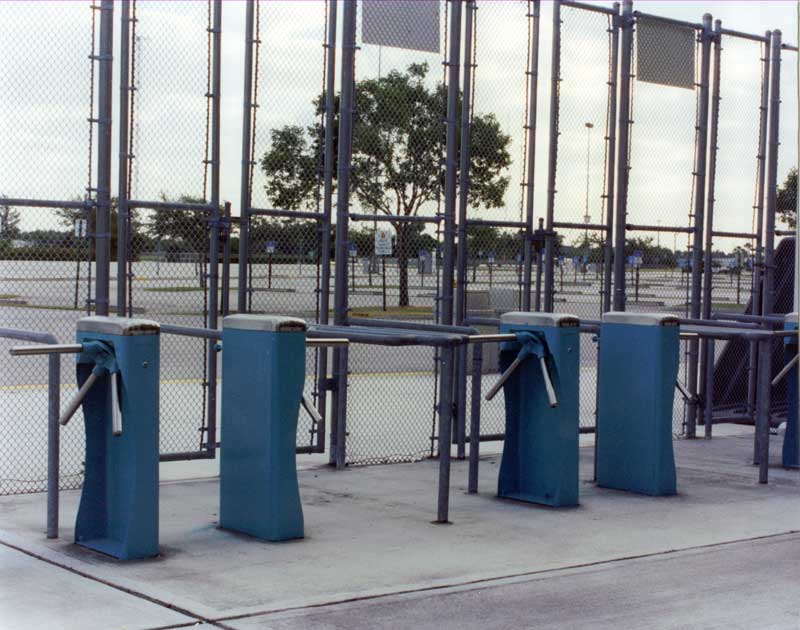

Model 55PC/00 Tripod Turnstile

An economical alternative to the Model “HD” where accuracy and accountability are vital. Designed for the registration of persons passing through. Powder coated lower cabinet with ANSI #304 stainless steel lid and arms. Tamper proof register and locked register cover. Has many safety features such as the rounded lid, spun closed arms and solid steel arm hub. Control options include foot controls, hand controls, one and two way operation.

Short Form Specification

WEIGHT: Fixed 110 lbs. Net – 160 lbs. Crated, Portable 185 lbs. Net – 235 lbs. Crated.

COVER: Deep drawn stainless steel, .078″ thick, corners with 1-3/8″ radii.

Cabinet: Welded single wall construction .105″ thick. 2″ blending outer wall radii, 1/4″ thick steelbase plate.

Mechanical Mechanism: Ratchet of 1″ x 6.5″ machined cast iron. Use aided by springs of 0.175″ dia. spring steel. Motion stabilized by large rotary shock absorber and 1/2″ thick cast iron two-lobe cam. Self Centered by 1/2″ steel compression shoe.

ARMS: Stainless steel tubing, .049″ thick walls, spun closed ends.

HUB: Solid steel with solid steel taper pin mounting.

PORTABLE: 0.04″ thick steel floor tread with up to 22″ opening, force fit stainless steel railing with .0112 wall thickness hand-grip loops, 3.5″ diameter solid rubber wheels.
