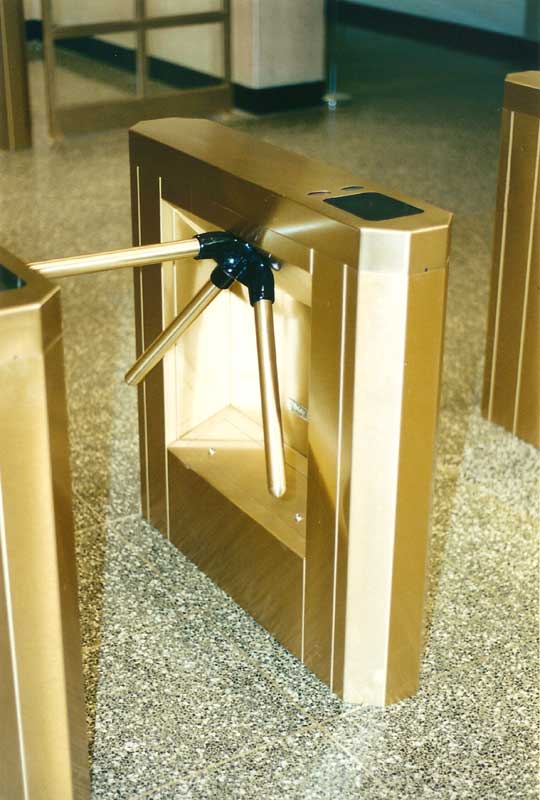

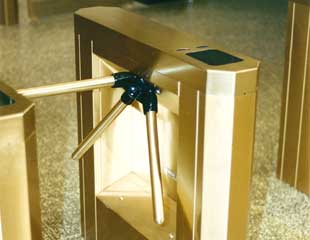

Model 150BF/00 Tripod Turnstile

The ultimate design engineering. Selected by Fortune 100 companies and others who require security ONLY a turnstile can provide. Muntz metal cabinet designed for internal mounting of proximity magnetic stripe and other card reader technologies. Electronics packages and power supplies serving the card readers can be mounted inside the electronics enclosure. Photoelectric sensors can be provided on both inbound and outbound sides to increase security protection. Lighted enunciators reading PRESENT CARD/PLEASE PROCEED. Other messages, are available.

Short Form Specification

WEIGHT: 195 lbs. Net – 235 lbs. crated.

COVER: ANSI 304 Stainless steel with #4 bushed finish coated with marine-grade powder coat incorporating brass coloring, .078″ thick, 0.25″ radii corners, sides 2.5″ deep, faceted ends.

CABINET: ANSI 304 stainless steel with a #4 brushed finish coated with marine-grade powder coat incorporating brass coloring. Each wall .078″ thick. Electronics housing between turnstile legs with housing access door having two locks. Faceted ends.

ARMS: ANSI 304 Stainless steel tubing brushed finish, spun closed ends.

HUB: Solid steel with solid steel taper pin mounting.

Mechanical Mechanism: Ratchet of 1″ x 6.5″ machined cast iron. Use aided by springs of 0.175″ dia. spring steel. Motion stabilized by large rotary shock absorber and ยด” thick cast iron two-lobe cam. Self Centered by 3/4″ laminated steel compression shoe.

Unlocking Controls: One continuous-duty rated 24VDC solenoid with 620% of required strength. Solenoid operates for 45 milliseconds per passage. All unlocking elements are mechanical. No time relays or transformers.
