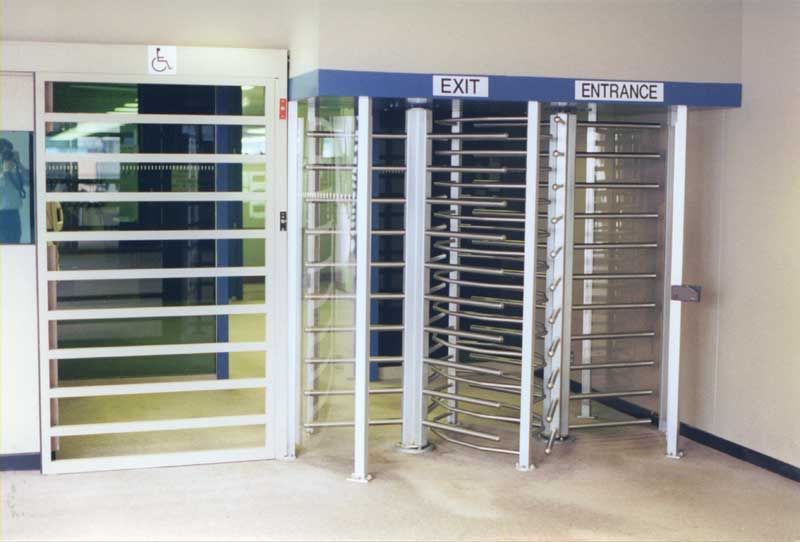

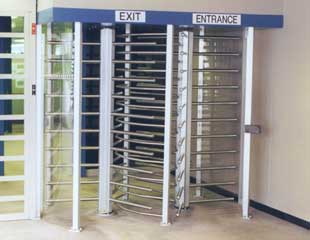

Twin Roto-Gate

The most attractive high security gate. Uniquely designed to be beautiful without compromising security. Materials that will retain their beauty through many years of heavy use. Extremely versatile features that will integrate with all automated security systems. Exceptionally long service life combined with lowest maintenance needs. The unquestioned leader in indoor security where the architect and security director must both be satisfied.

Short Form Specification

Weight: 1,850 lbs. net – 2,100 lbs. crated
Arms: ANSI 304 Stainless steel (brushed finish). 4" reinforcing plugs at rotor end, spun closed ends, walls 0.065" thick. Press fit 3.5" into Rotor Sockets.
Rotors: One piece solid aluminum extrusions weighing 140 lbs. each, three wing cross section, clear anodized.
Barriers: Two columns of 2" by 2" solid aluminum, 21 arms 54" in length bent 1" O.D. ANSI 302 Tubing with 0.080" wall thickness force fit and pin secured.
Passageway Columns: Four columns of 2" by 2" clear anodized aluminum tubing with 0.125" wall thickness.
Passageway Sheeting: ANSI 304 Stainless Steel (brushed finish) 0.065" thick and rising from 4" above floor level to 4" below mechanism housing. (Alternate is 0.25" thick curved Lexan sheet.)
Mechanism: All steel and machine cast iron. Two control ratchets each 1.25" thick hardened steel. Two locking pawls each 1.25" thick hardened steel. Time delay and power relays with 10 amp contact ratings and ten million operation life.
Ceiling: Full ceiling 8′ by 4’6", 5" deep.
