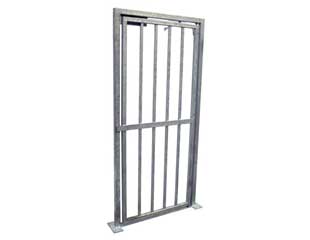

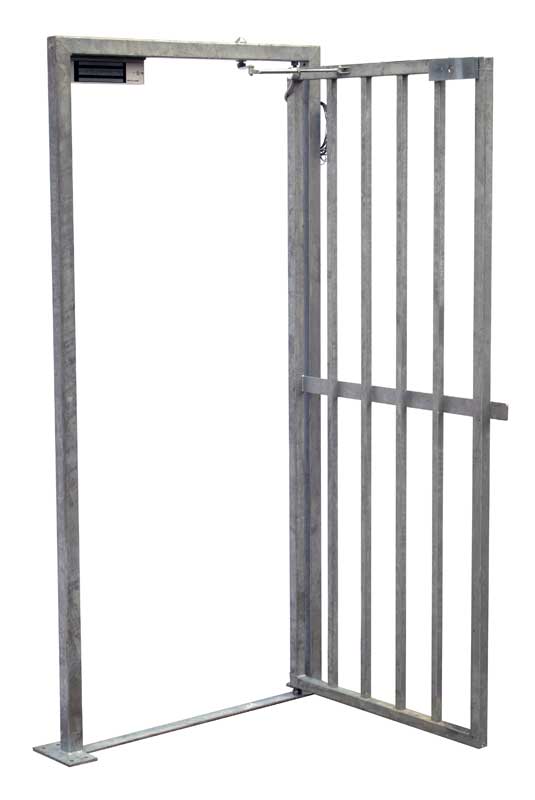

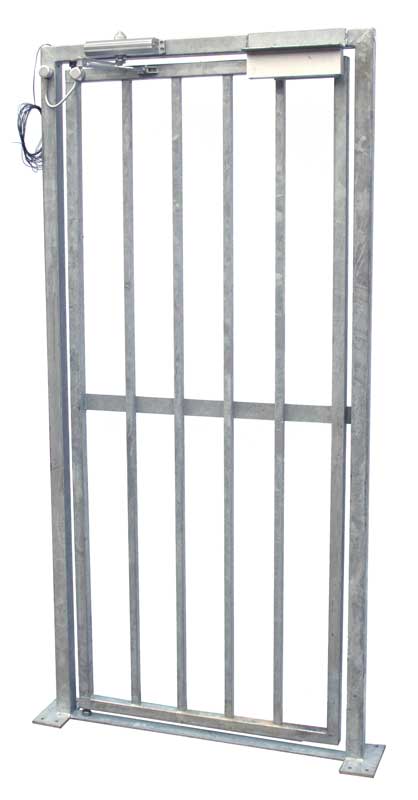

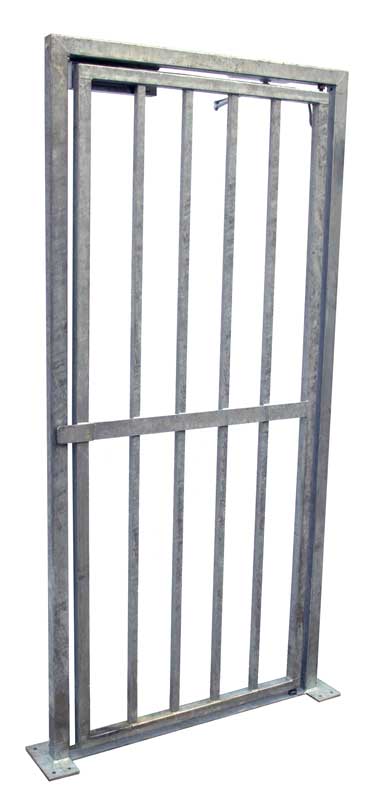

Full Height Swing Gate #1257
The full height Swing Gate #1257 is fabricated from powder coated steel, ANSI #304 stainless steel or galvanized steel. The perimeter frame and the gate frame is one piece welded construction. The hinges are solid steel with 5,000lb dynamic load thrust bearing for 90 degree swing with a hydraulically dampened door closer. The locking mechanism is a Magnalock Model 62G magnetic gate lock or equivalent. The dimension of the perimeter frame where a person would pass through is 36” wide achieving ADA compliance.
Specifications
- PERIMETER FRAME: One piece welded construction. Vertical members are 2” by 2” (steel powder coated or ANSI #304 stainless steel or galvanized steel) 11 gage Tubing. Top frame rail is 2” by 2” (steel powder coated or ANSI #304 stainless steel or galvanized steel) 11 gage Tubing. Bottom spreader rail is 0.25” by 2” (steel powder coated or ANSI #304 stainless steel) placed against Flooring upon installation.
- GATE LEAF FRAME: One piece welded construction. Frame is 1-1/2” by 1-1/2” (steel powder coated or ANSI #304 stainless steel or galvanized steel) 11 gage Tubing. Internal barrier is welded 2” by 2” mesh of 0.25” diameter wire (steel powder coated or ANSI #304 stainless Steel or galvanized steel).
- HINGES: Contiguous 0.5” solid steel hinge rod capturing 0.5” solid steel leaf and frame pivot members with 5,000 Pound dynamic load thrust bearing aligning hinge rod.
- GATE CLOSER: Full hydraulic checking with scaled adjustable closure damping speed. All season fluid. Push/pull type for Full 90 degree opening.
- GATE LATCH: Magnalock Model 62G magnetic gate lock or equivalent with 1200 lb. draw strength; includes external conduit fitting.
